FD73-135
Home > Products > FD73-135 Hydraulic Drilling Spindle Head

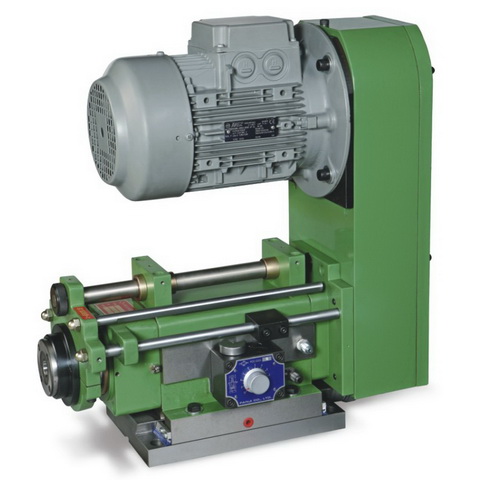

Hydraulic Drilling Spindle Head
• Hydraulic Power Systems
• Max.Revolution/Minute 3,000rpm
• Overall Stroke Hydraulic-50~135mm Manual-50mm
• Power 1.5-3.7kw- 4P, 220/380V
• Drilling Capacity Ø25(Mild Steel)
• Max.Revolution/Minute 3,000rpm
• Overall Stroke Hydraulic-50~135mm Manual-50mm
• Power 1.5-3.7kw- 4P, 220/380V
• Drilling Capacity Ø25(Mild Steel)
Specification
| FD73-135 Specification | |
| Hydraulic Pressure | 20~45 kg/cm2 |
| Drilling Capacity | Ø25(Mild Steel) |
| Power | 1.5-3.7kw- 4P, 220V/380V |
| Max.Revolution/Minute | 3,000 rpm |
| Weight | 125kg |
| Overall Stroke | Hydraulic-50~135mm, Manual-50mm |
| Cylinder Diameter | Ø 100 |
| Cylinder Area | Forward 54.78cm2 Backward 28.27cm2 |
| Thrust Force | 1,640kg(30kg/cm2) |
Consumption Parts
| FD73-135 Consumption Parts | |
| Spindle Bearing | 32008x1, 6008Zx1, 32007x1 , 6007Zx1 |
| Pulley Bearing | 6013Zx1 |
| O-Ring for Front Cover | DH-80x1,P-80x1, T601-80-90-6x1, G-105x1 |
| O-Ring for Piston | P-90x2, G-65x1 |
| O-Ring for Rear Cover | P55x1 , T601-55-65-6x1, G-105x1 |
‧ This unit is mounted on a manual slide.
‧ Always use full hydraulic stroke.
‧ Stopper on spindle tail is not used.
‧ Suitable for higher RPM or high pressure.
