Adjustable MSH

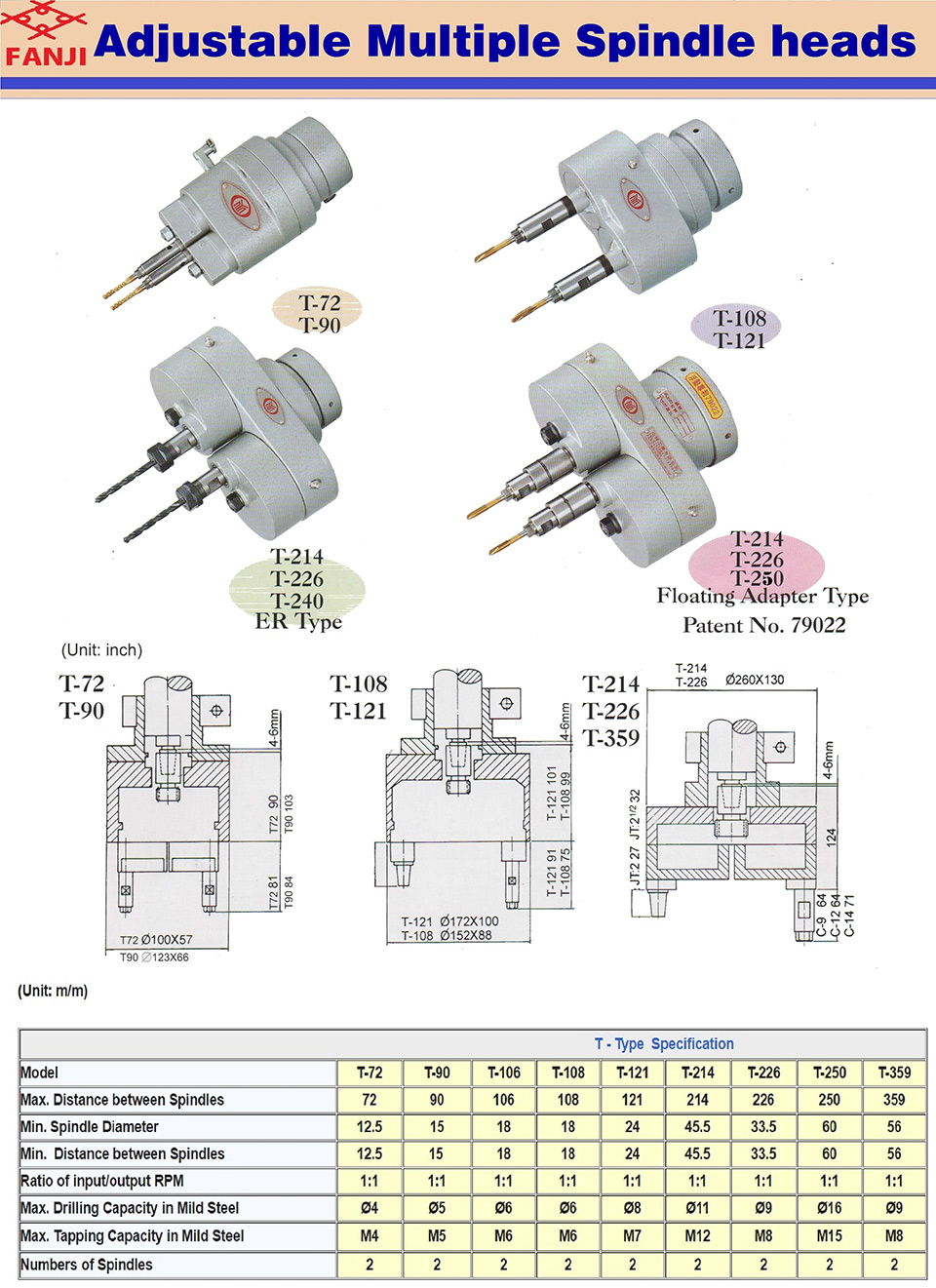

Adjustable Multiple Spindle Head
Product Model: T-70, T-72, T-90, T-108, T-121, T-125, T-145, T-150, T-214, T-226, T-250, ER Type, T-214, T-226, T-250, Floating Adapter Type
Product Model: T-70, T-72, T-90, T-108, T-121, T-125, T-145, T-150, T-214, T-226, T-250, ER Type, T-214, T-226, T-250, Floating Adapter Type
Specification
(Unit: m/m)
|
T - Type Specification |
|||||||||
| Model | T-72 | T-90 | T-106 | T-108 | T-121 | T-214 | T-226 | T-250 | T-359 |
| Max. Distance between Spindles | 72 | 90 | 106 | 108 | 121 | 214 | 226 | 250 | 359 |
| Min. Spindle Diameter | 12.5 | 15 | 18 | 18 | 24 | 45.5 | 33.5 | 60 | 56 |
| Min. Distance between Spindles | 12.5 | 15 | 18 | 18 | 24 | 45.5 | 33.5 | 60 | 56 |
| Ratio of input/output RPM | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Max. Drilling Capacity in Mild Steel | Ø4 | Ø5 | Ø6 | Ø6 | Ø8 | Ø11 | Ø9 | Ø16 | Ø9 |
| Max. Tapping Capacity in Mild Steel | M4 | M5 | M6 | M6 | M7 | M12 | M8 | M15 | M8 |
| Numbers of Spindles | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
